CBM-Door
DISCONTINUED: This page is legacy only. All my tools are developed solely to improve my own real-world productivity, in my spare time from a real full-time job and sold on request for a nominal fee only. After over 20 years, I discontinued my development for Vectorworks since I moved to Archicad.
Draws: door and opening objects. For insertion in straight and round walls, with optional reveals, sills, sun shading. Supports custom profiles, part textures, plug-in styles, catalogs on demand, automaps its own IFC export.
Outputs: 2D, 3D, IfcDoor, IfcOpening, DIN 276 Classification

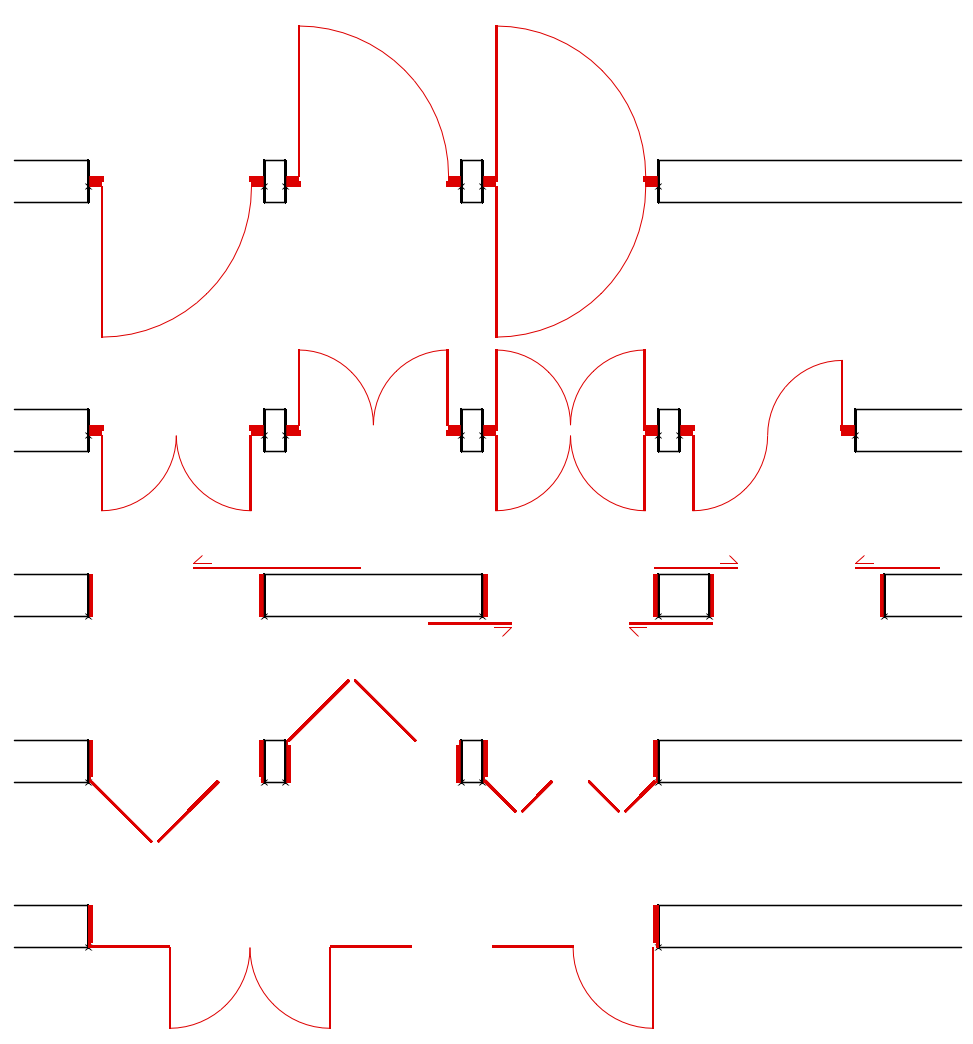

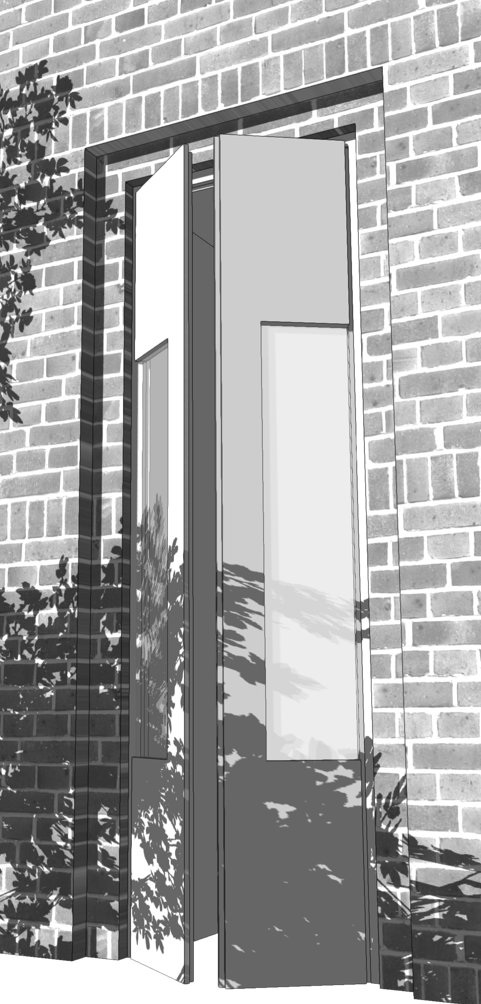

Configurations: - = fixed, > = left casement or slider, < = right casement or slider, B = bipart even, = = double sliding, V = folding, W = double folding, ? = empty
Parameters:

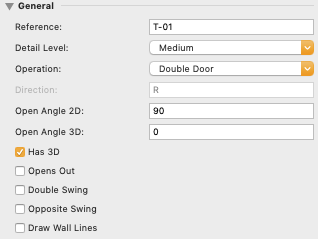

General
Minimal interface

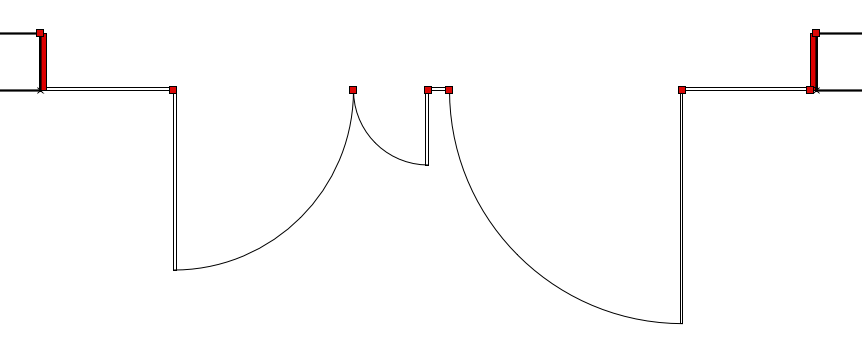

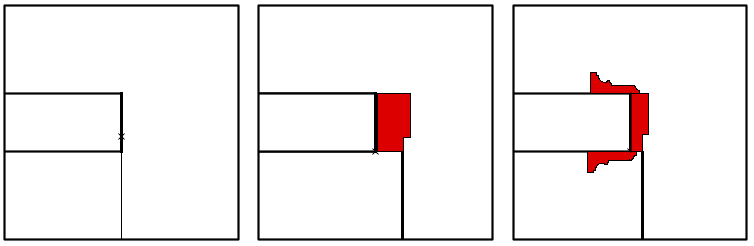

Displays three 2D detail levels
Code-style configuration:
direct modifiers, no interface
Control-point driven custom door parts:
direct editing, no interface

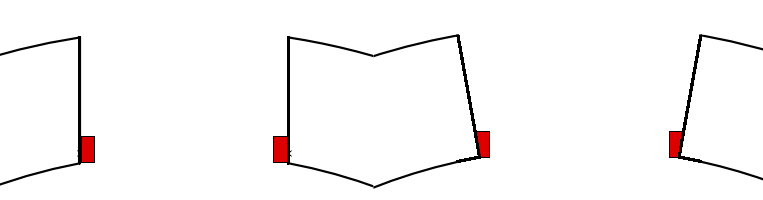

Round Walls: Radial or straight sides

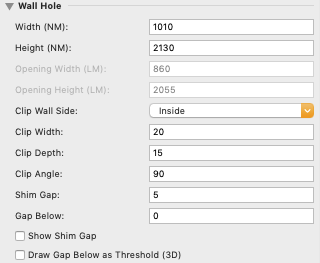

Wall Hole
How the door element cuts into a wall, round wall infos and control

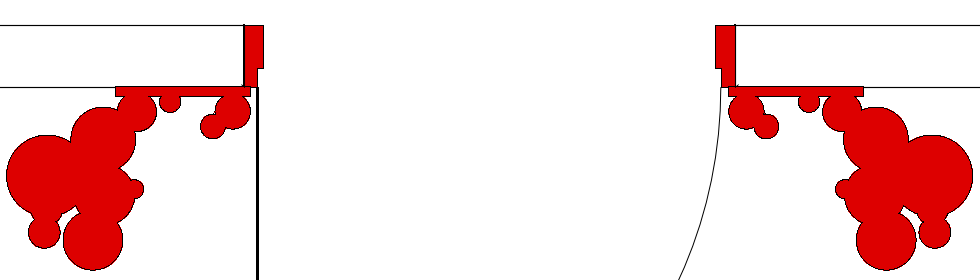

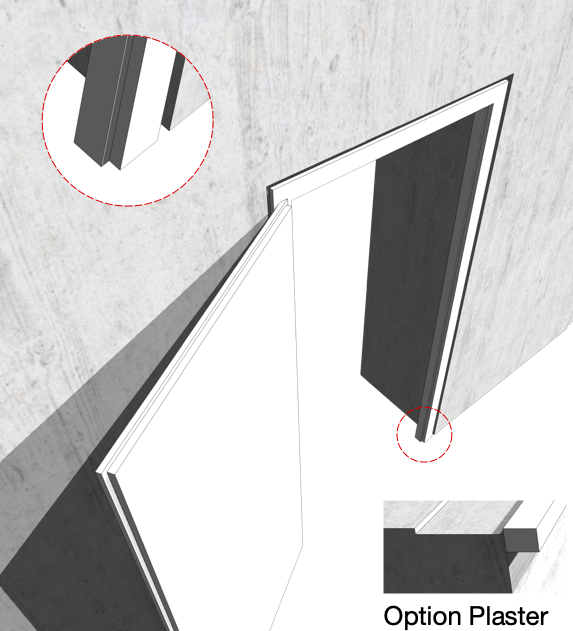

Wall clipping or adding (shadow gap, plaster decors)

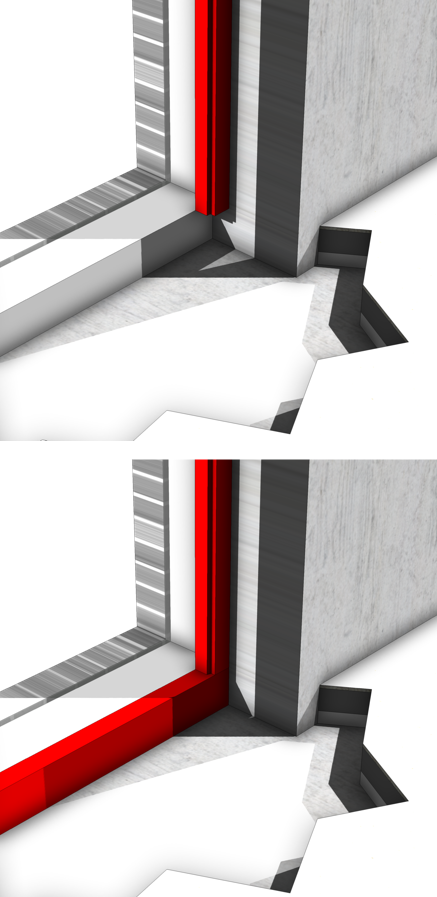

Wall hole to carrying slab for correct wall quantities, optional Threshold
Position

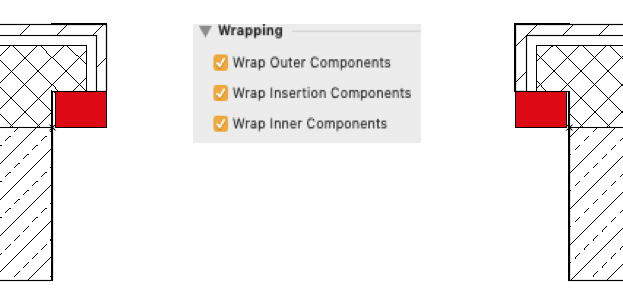

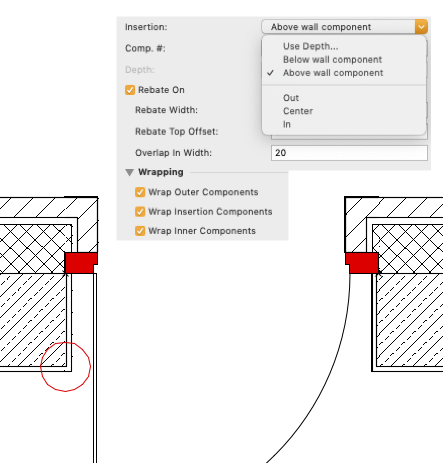

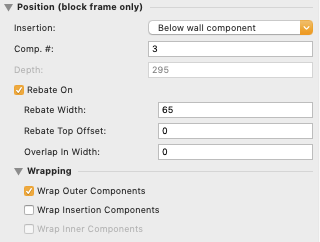

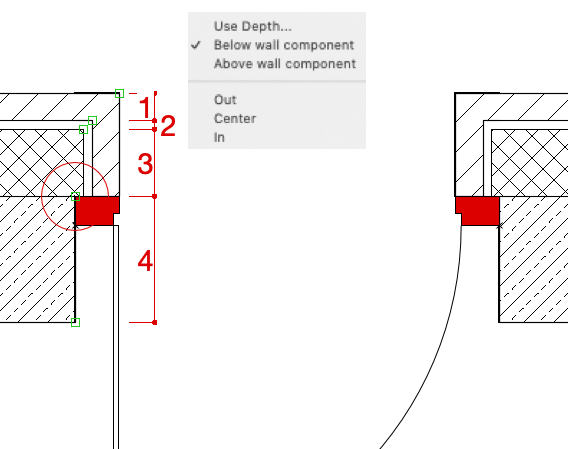

In-Wall Placement with Wall Components, wrapping controls

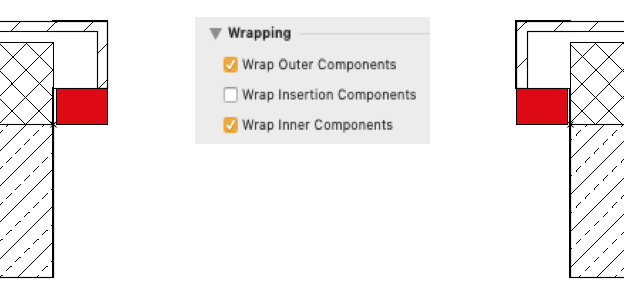

Full styleable, Component wrapping and positioning
Separate Insertion component wrapping

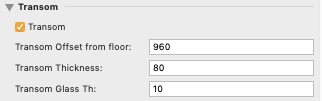

Transom

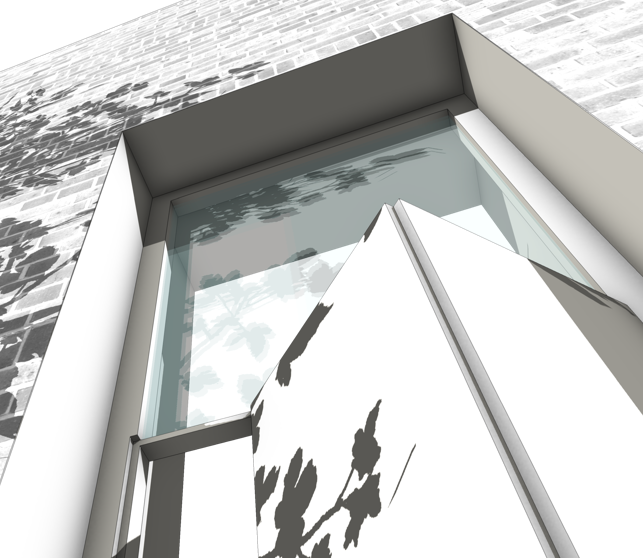

Door parts above
Transom without muntins

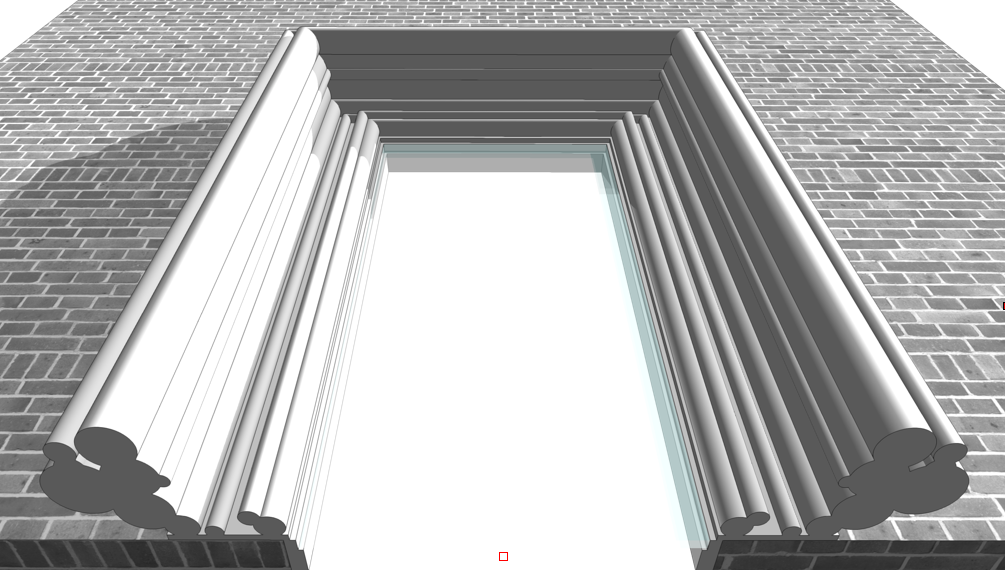

Unlimited custom profiles

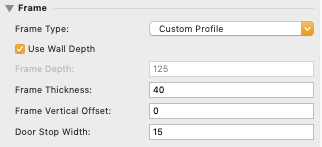

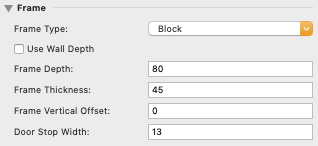

Frame
Block settings

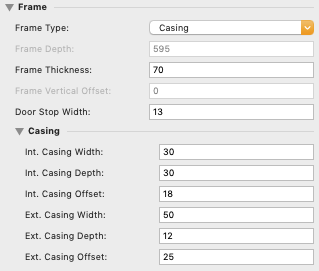

Casing settings

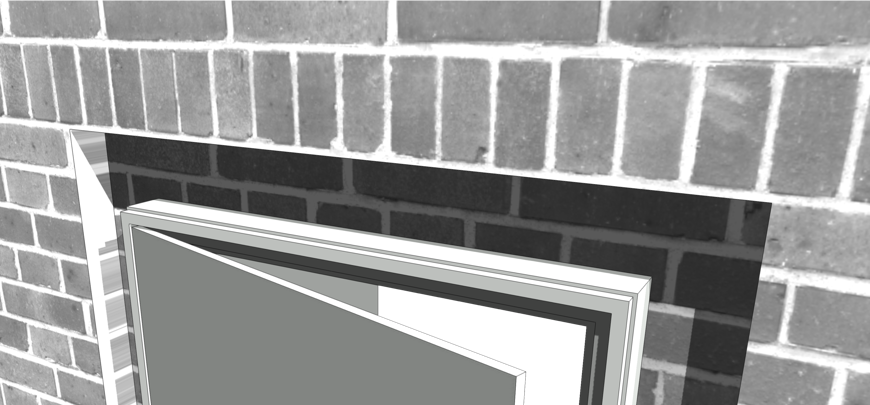

Frame and leaf

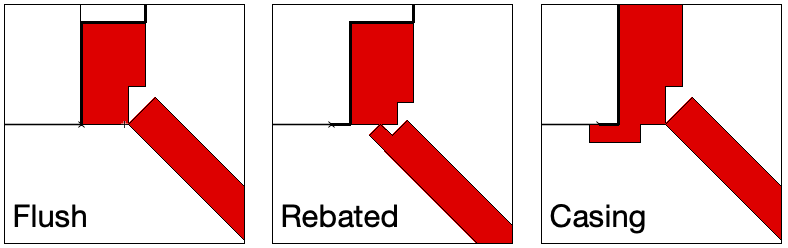

Leaf edge flush or rebated

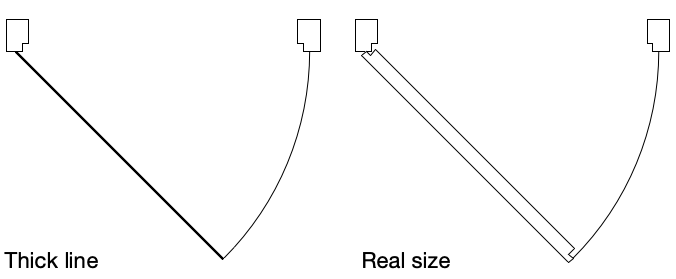

Leaf 2D display symbolic or realistic
Leaf

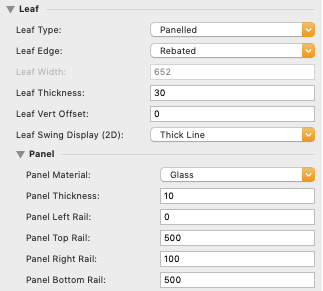

Leaf settings
Leaf with panels

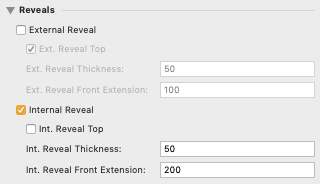

Reveals

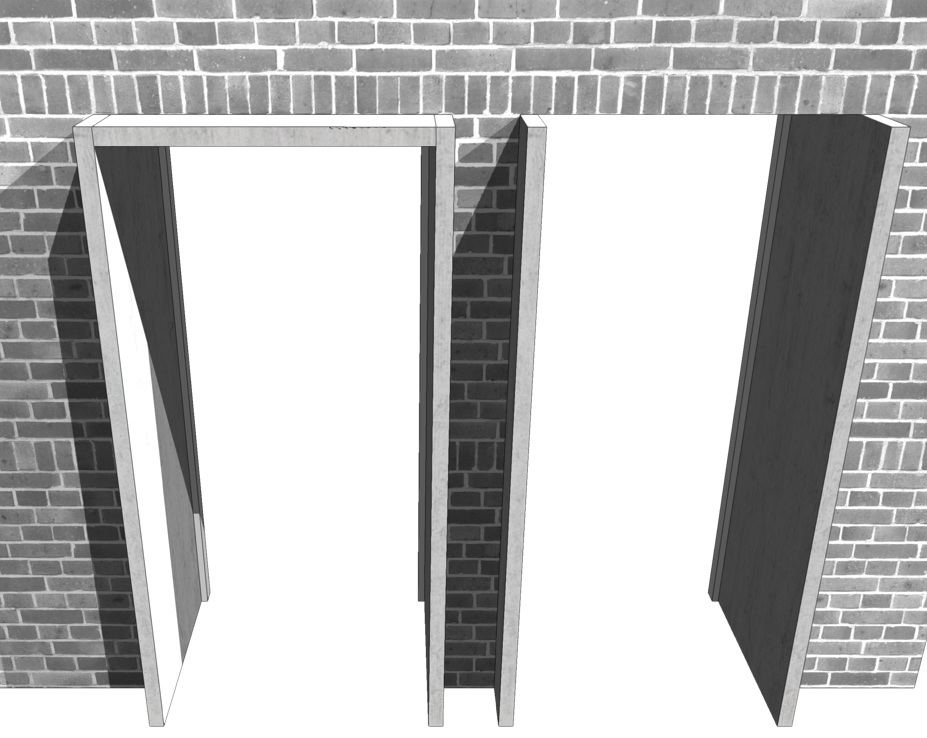

External and internal Reveals
Sides with optional top part (disabling top part allows seemless stacking across multiple floors)
Sun Shading

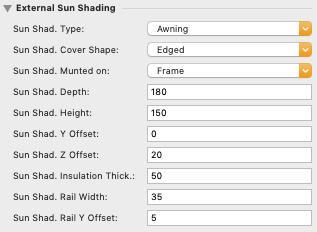

External Sun Shading

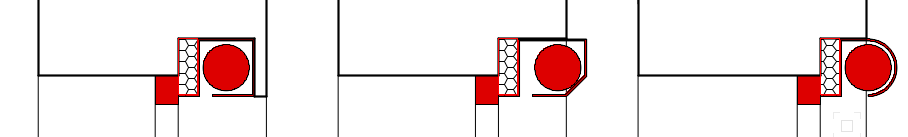

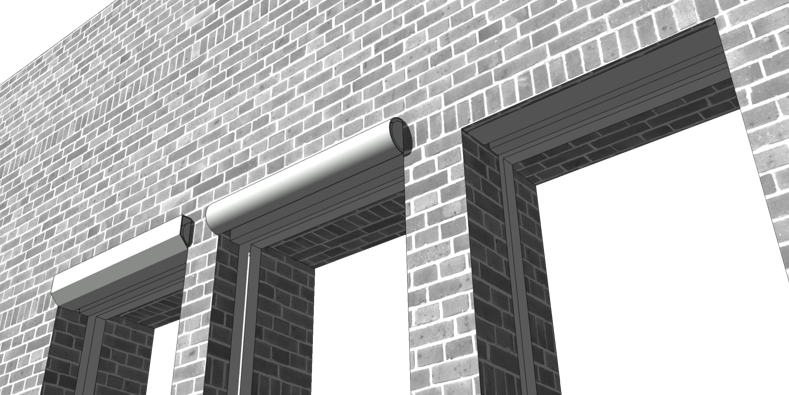

Cover shapes: round, rectangular and edged

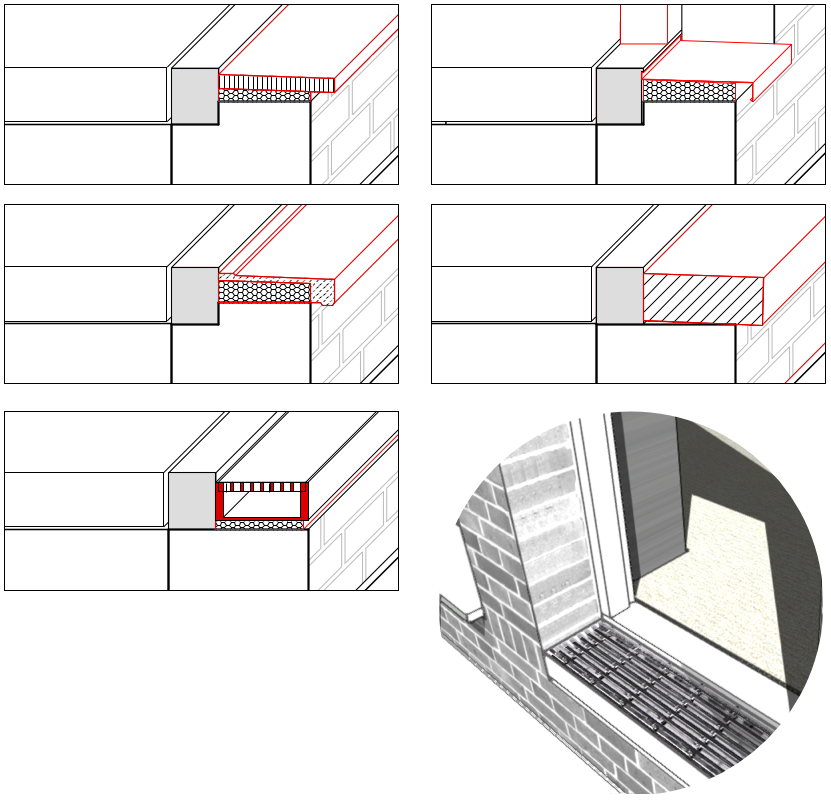

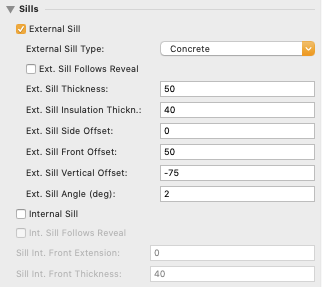

Sills and Drainage
Insulated external sills, option for Drainage
Metal, concrete, plank, brick sills and drainage, with or without insulation

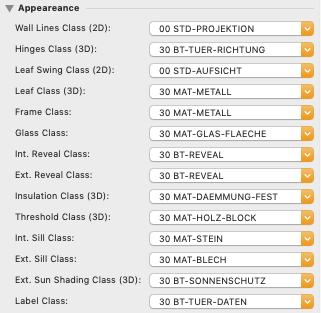

Appearance
Appearance in 2D, 3D and section

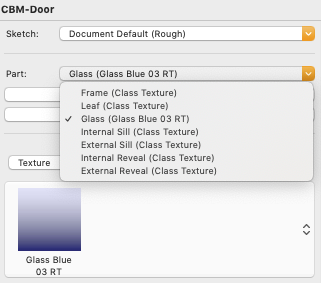

Custom texture parts

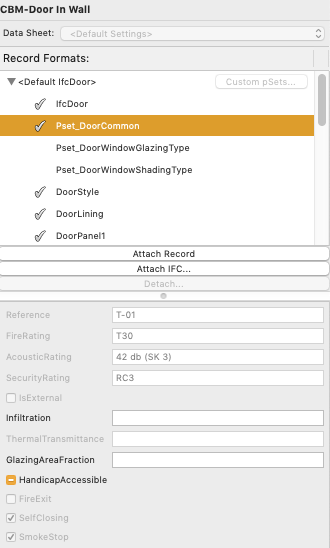

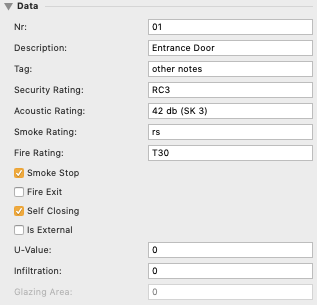

Data
Semantic, physical Data and Norms
IFC automapping

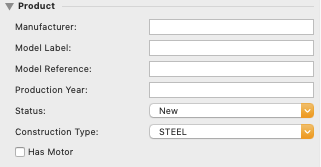

Product
Product attributes

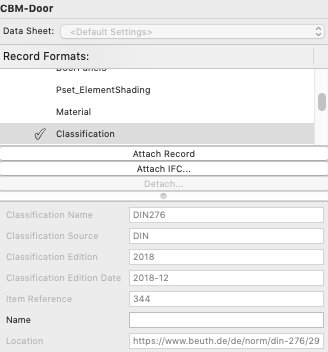

IFC classification DIN 276
