CBM-Flat Roof Window (THIS PAGE IS UNDER CONSTRUCTION)
DISCONTINUED: This page is legacy only. All my tools are developed solely to improve my own real-world productivity, in my spare time from a real full-time job and sold on request for a nominal fee only. After over 20 years, I discontinued my development for Vectorworks since I moved to Archicad.
Draws: flat roof window. Supports, auto-placement on slab components, custom part textures, plug-in styles, catalogs on demand, automaps its own IFC export.
Outputs: 2D, 3D, IfcWindow, DIN 276 Classification

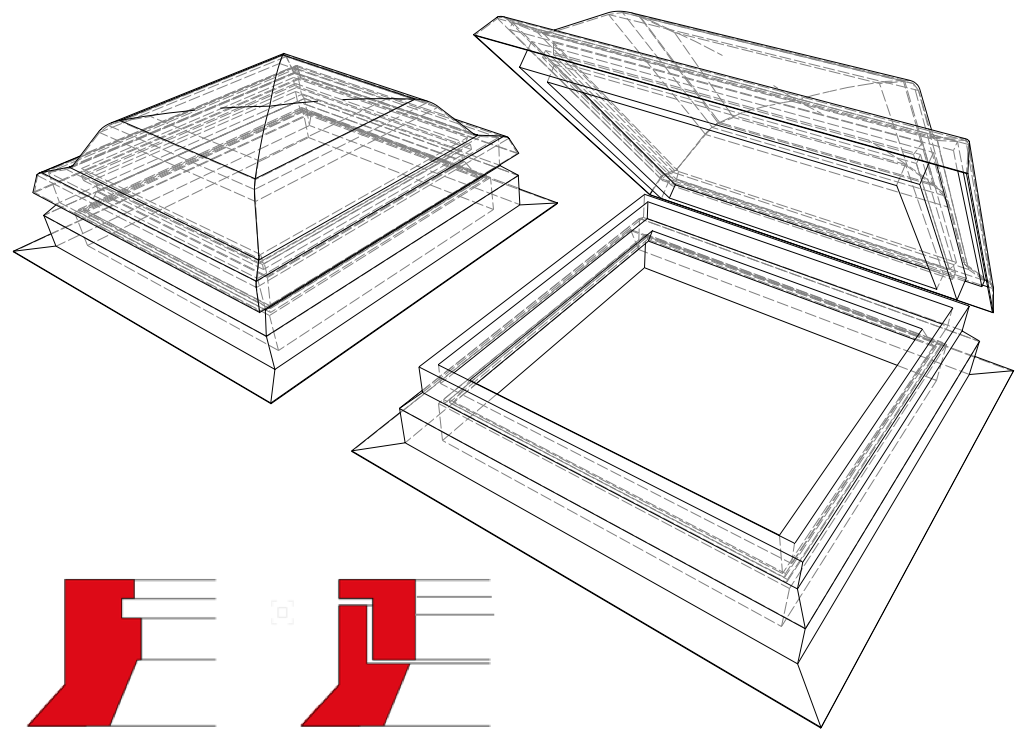

Configurations: flat glass, curved glass, dome glass
Parameters:

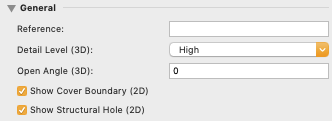

General
Minimal interface

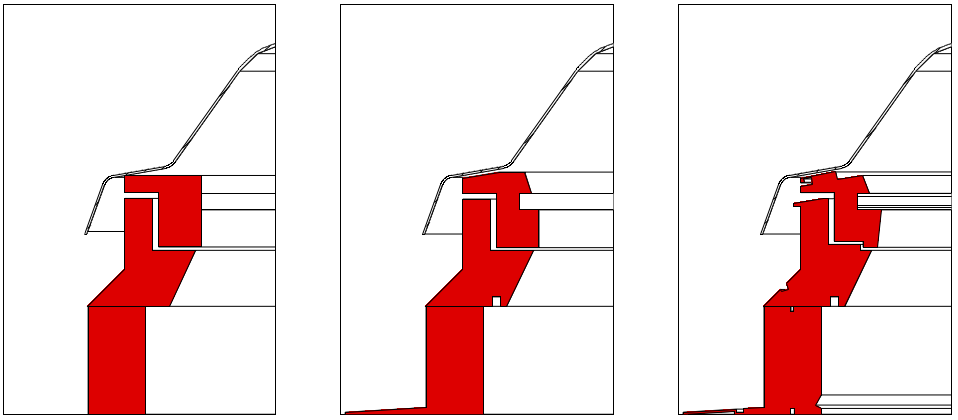

Three 2D detail levels

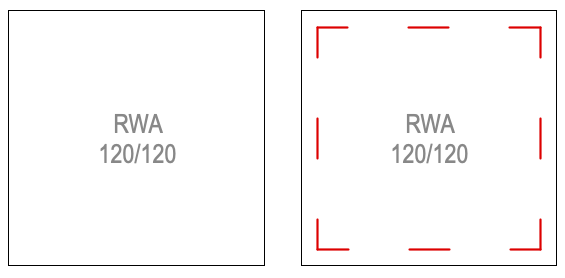

Option: separate 2D display for cover and structural hole
Apt for high level of detail

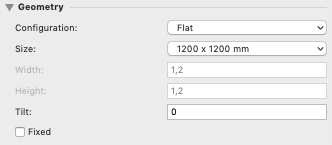

Geometry
Configurations

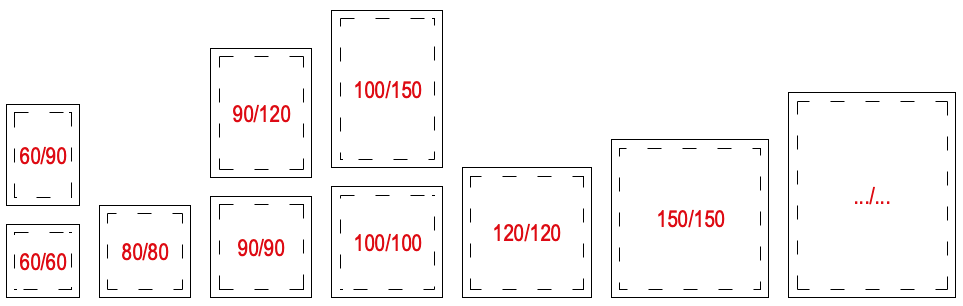

Size configurations: custom and predefined
Glas shape configuration: flat, curved and dome
Option: fixed and vented

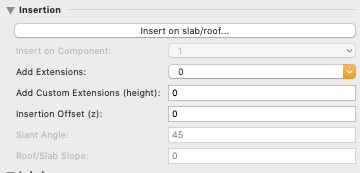

Insertion
Manages up to three slab objects: Covering, Insertion and Ceiling slab (movie).
Automatic placement on chosen component

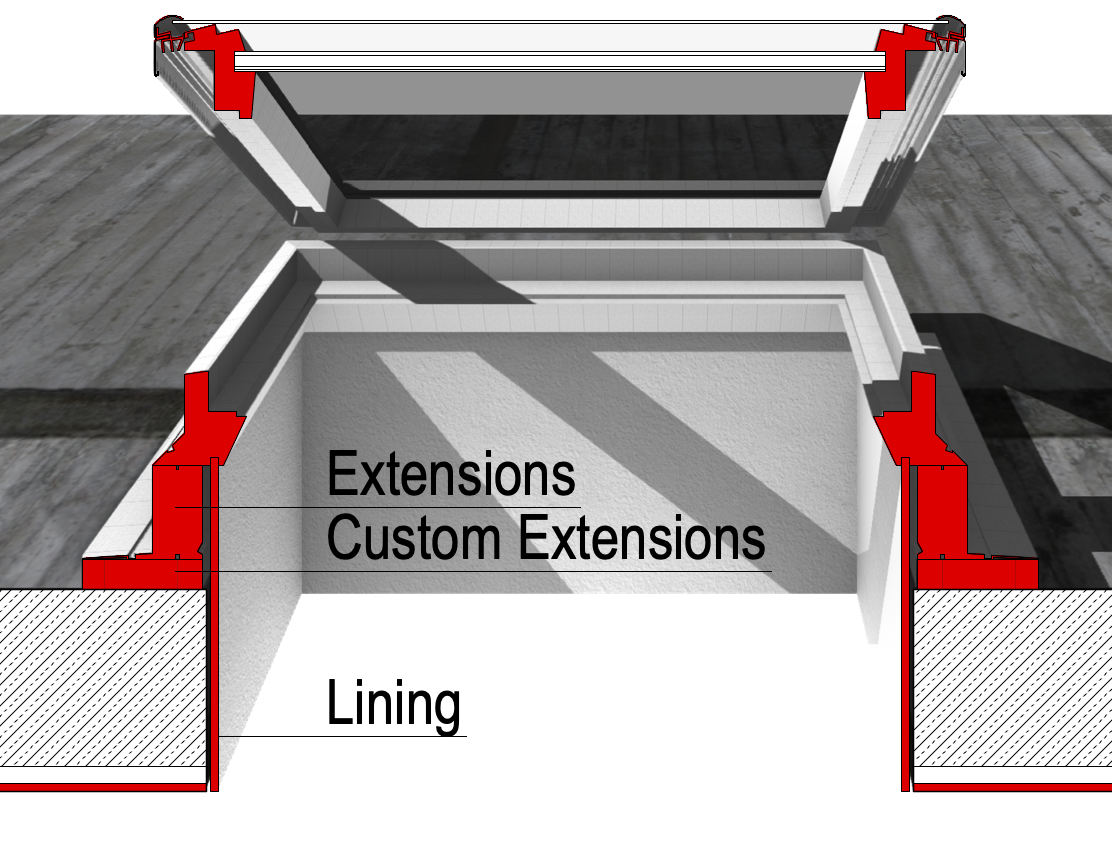

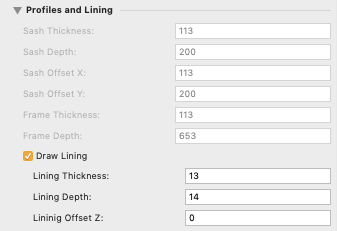

Profiles and Lining
Calculated profile sizes (for IFC export)
Option: lining
Join to chosen slab

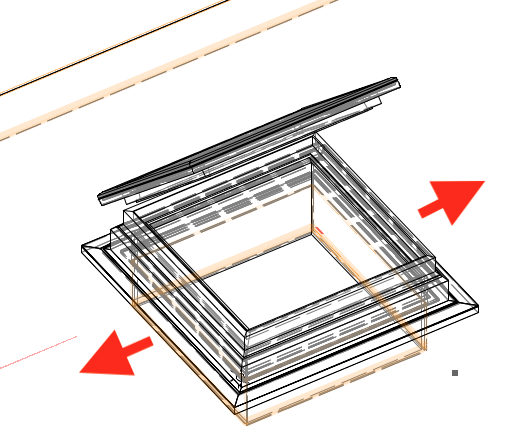

Manages slab modifiers automatically: creation, deletion, move and rotate

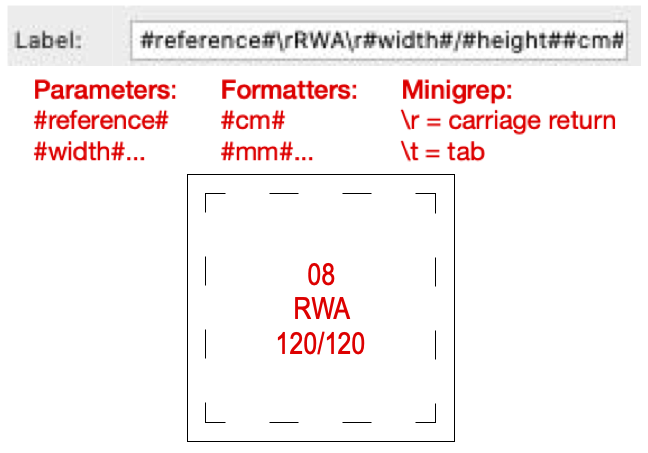

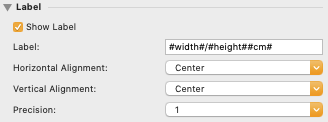

Label
Parameter-parsing label on drawing
Supports units formatters and minigrep

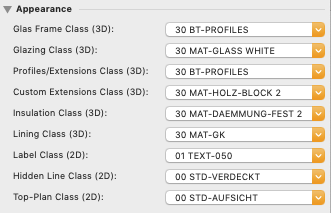

Appearance
Appearance in 2D, 3D and section

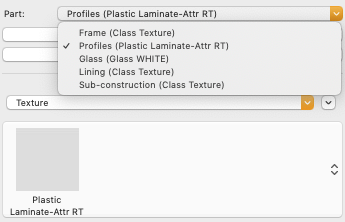

Custom texture parts

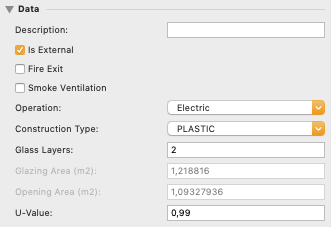

Data
Semantic, physical Data and Norms

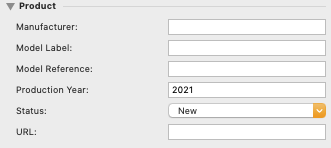

Product

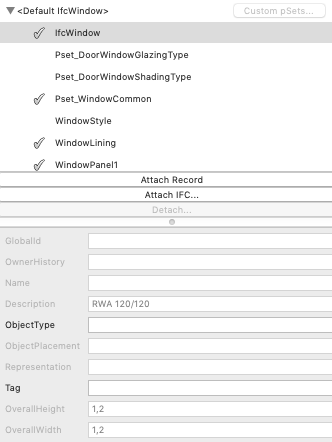

IFC
IFC automapping

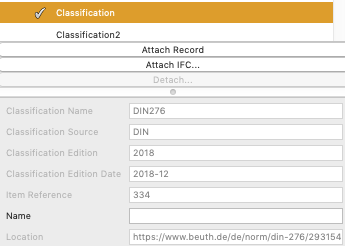

IFC classification
