DISCONTINUED: This page is legacy only. All my tools are developed solely to improve my own real-world productivity, in my spare time from a real full-time job and sold on request for a nominal fee only. After over 20 years, I discontinued my development for Vectorworks since I moved to Archicad.
Draws: cap ceiling for existing buildings. Storey bound, supports custom profiles, part textures, plug-in styles, catalogs on demand, automaps its own IFC export. This plug-in is still in progress.
Outputs: 2D, 3D, IfcSlab, DIN 276 Classification
Parameters:

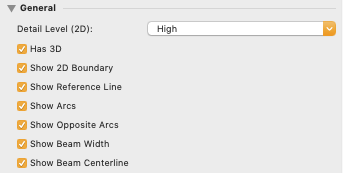

General

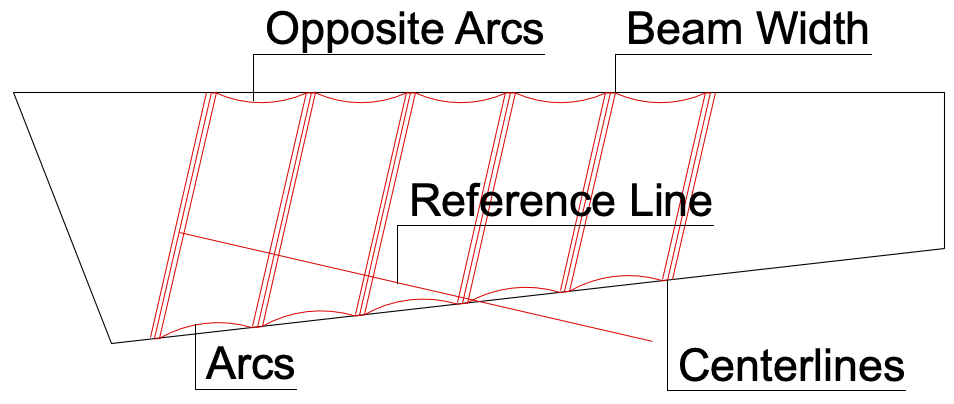

Extensive 2D options

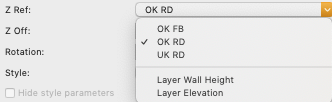

Storey and Style
Responds to storey levels, styleable
Vault Geometry

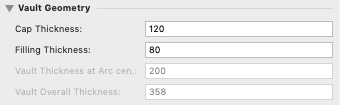

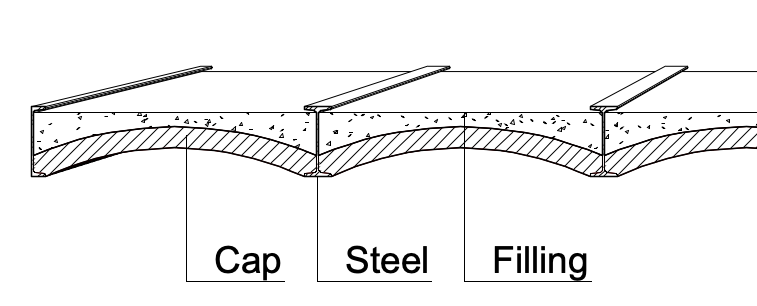

Supports 3 components: cap, fill and steel shape
Supports any polygonal geometry, align vault caps to a chosen side.

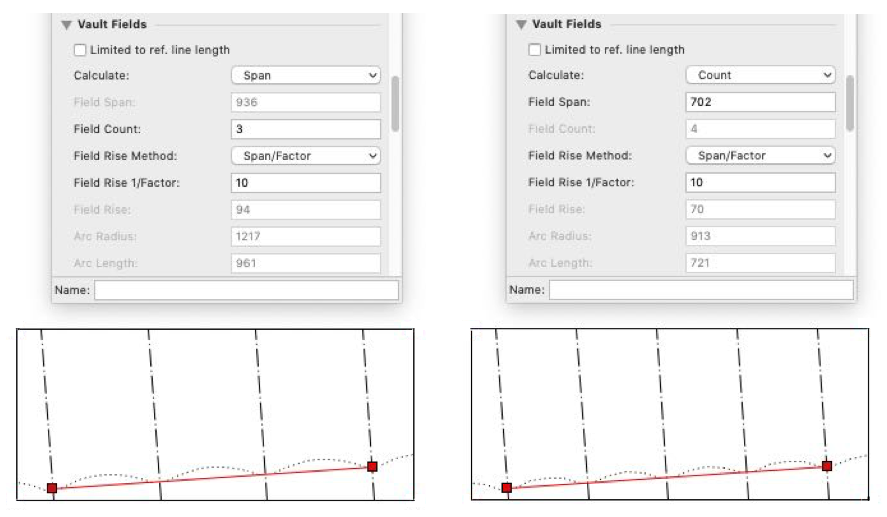

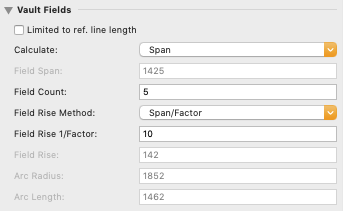

Vault Fields
Control-point driven field geometry, no dialogs

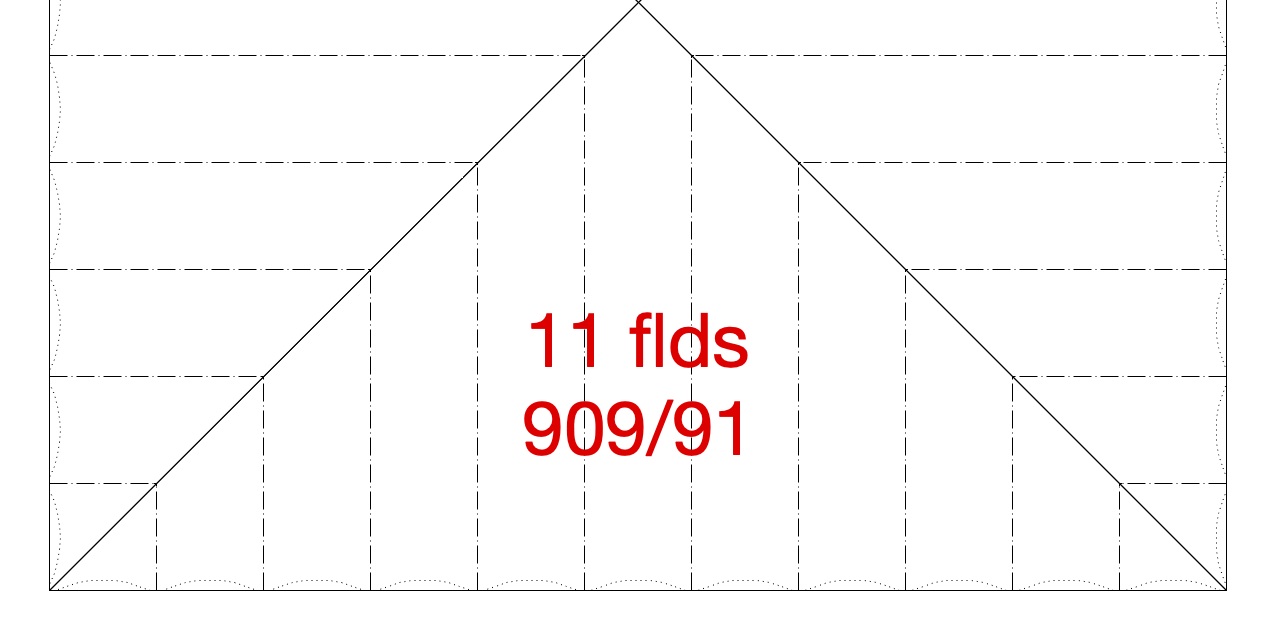

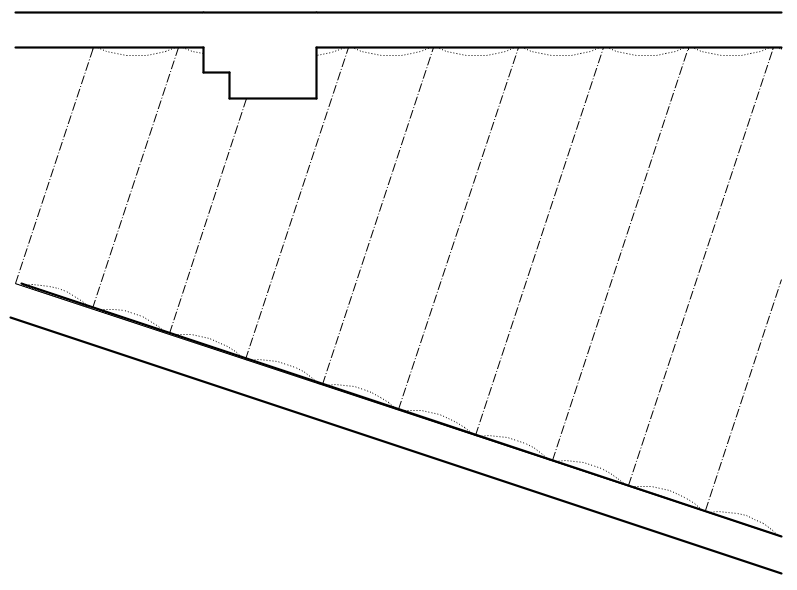

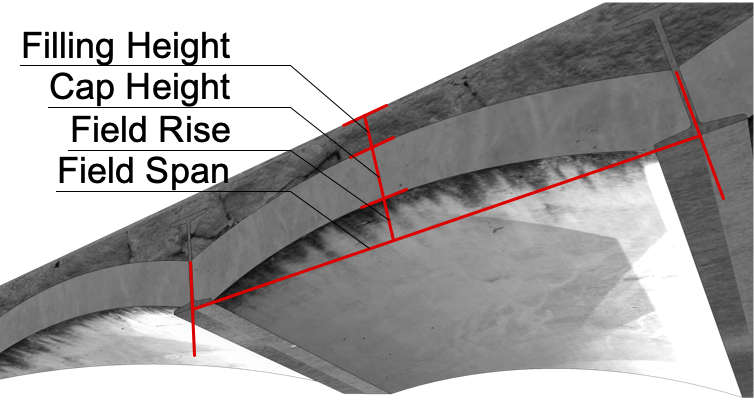

The reference line length/field count determines the span. Option to use it as limit.
The field rise can be entered manually or calculated by factor (around 1/10 of the span).

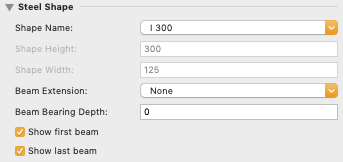

Steel Shape

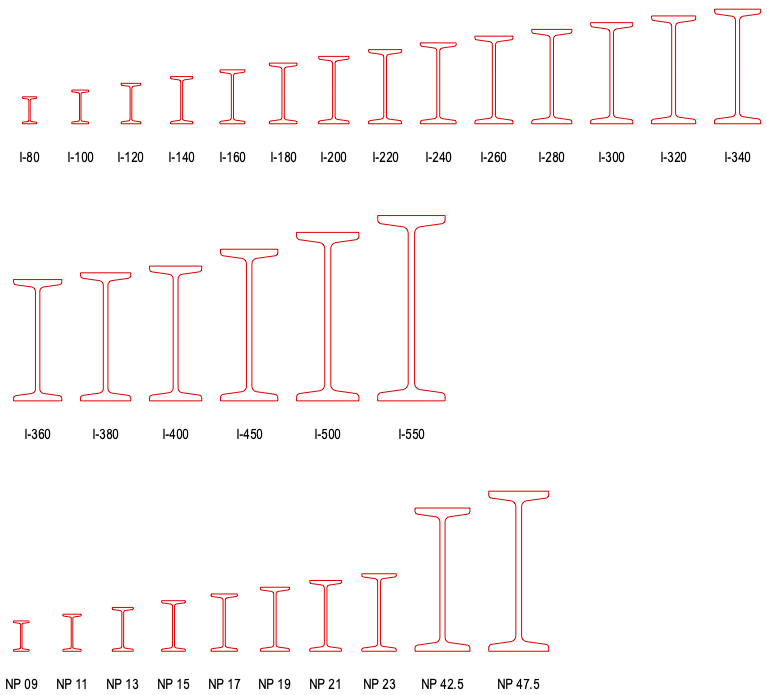

Optional Steel shape, extra historical sizes

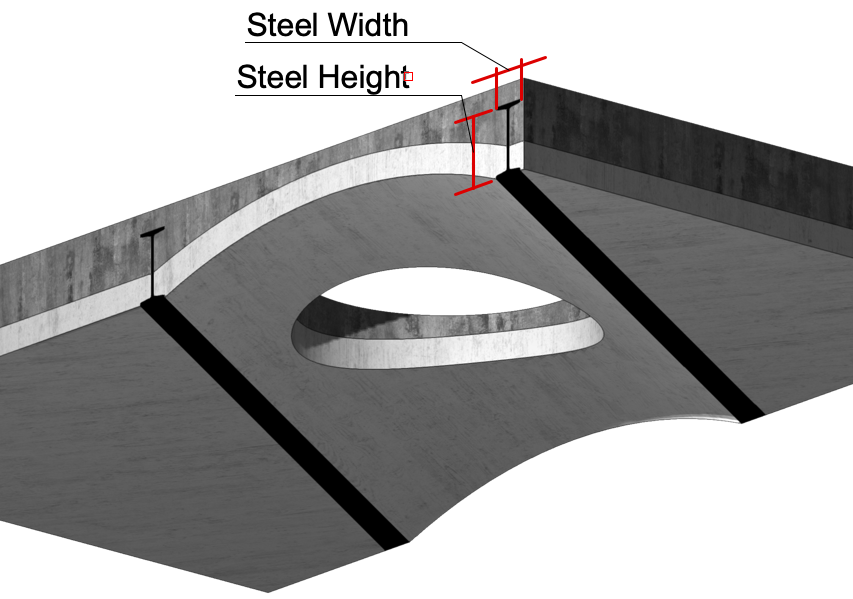

Symbol-based steel shape geometry, fully customizable.
Label

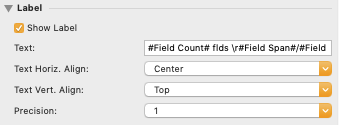

Parameter-parsing label on drawing
Supports units formatters and minigrep

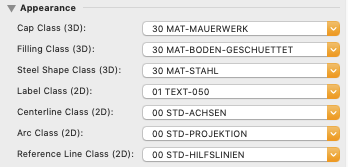

Appearance

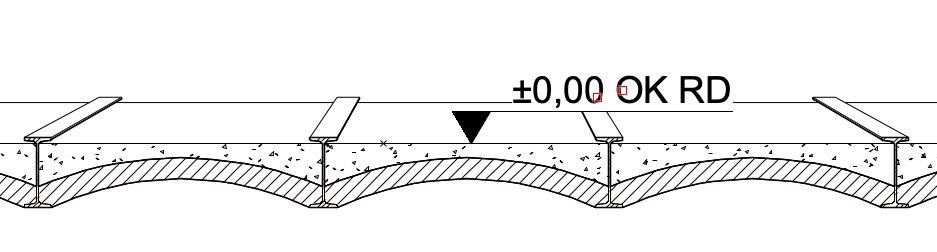

Appearance in 2D, 3D and section

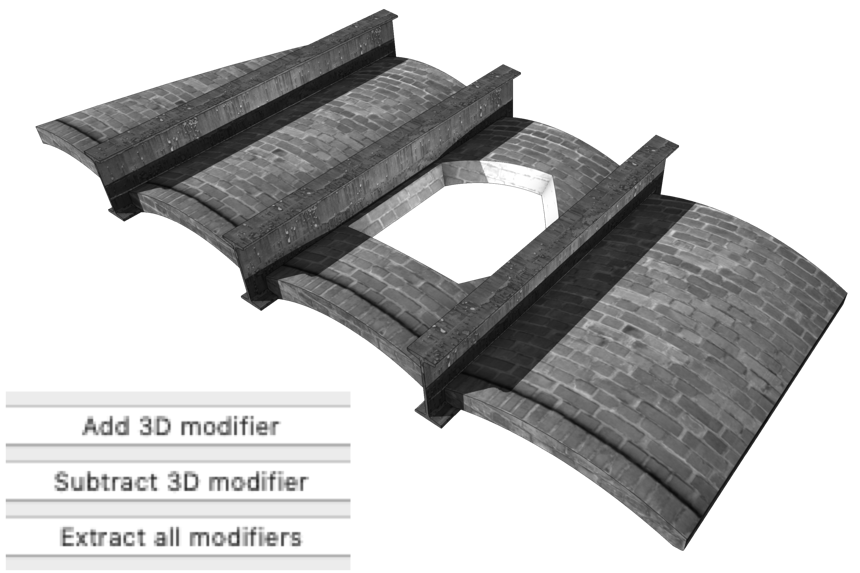

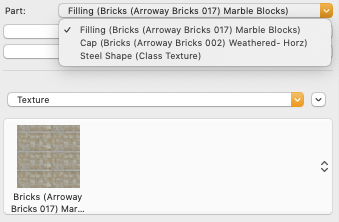

Custom Texture Parts
Add, subtract 3D modifiers of any kind. Option to extract them for easier edit (avoid edits in Profile group)
Data

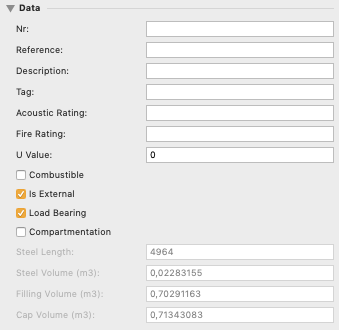

Semantic, physical Data and Norms

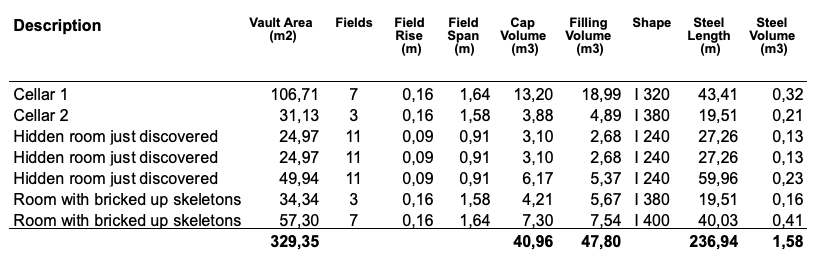

Ready for quantity take offs
Product
Product attributes for compatibility reasons with new slabs. Capped ceiling are seldom built new, they are existing, need thus no product specification

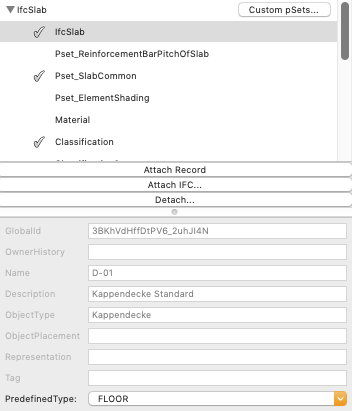

IFC automapping

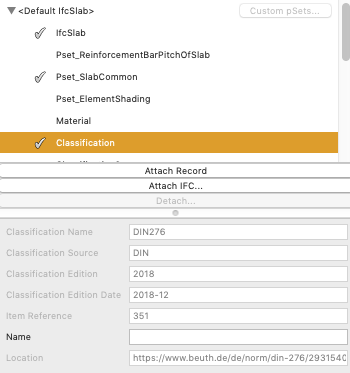

IFC classification DIN 276
